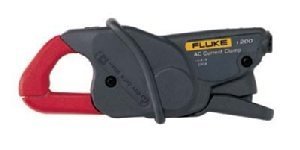

Fluke I200 Small sized AC current clamp Reviews
Other Picture
Fluke I200 Small sized AC current clamp Feature
- Model: I200 AC
- Current Range: 1A TO 200A
- Frequency Resp.: 40 Hz. TO 40 KHz. 10MV/A, 100MV/A
- Maximum cond. dia.: 0.8"
- Category: CAT III, 600V
Fluke Current clamps are the ideal tools to extend the current ranges of Multimeters. The i200 is a single range 200A AC current clamp with current output via safety shrouded banana plugs. The i200 is compatible with most Fluke multimeters or any other current measurement device that accepts shrouded banana plugs. Features: Companion to a DMM to measure up to 200 A AC 1mA per Amp output garantuees easy reading on you meter Take accurate current readings without breaking the circuit Max. conductor diameter: 20 mm CAT III 600V safety rating Frequency Response: 40 Hz. to 40 Hz. 10MV/A, 100MV/A Maximum Conductor Diagonal: 0.8" Specifications Nominal current range: 200 A Continuous current range: 0.5 A - 200 A Maximum Non-Destructive Current: 240 A Lowest measurable current: 0.5 A Basic accuracy: 1% + 0.5 A (48-65 Hz) (% reading + floorspec) Useable frequency: 40 Hz - 10 kHz Output level(s): 1 mA/A Safety Specifications Safety: CAT III, 600 V Maximum voltage: 600 V AC Mechanical & General Specifications Warranty: 1 year Maximum conductor diameter: 20 mm Maximum conductor size (busbar): 20 x 5 mm Output cable length: 1.5 m Shrouded banana plugs: Yes
